LINKSYS RE6500 刷机教程

Hardware Highlights

Model Version SoC CPU MHz Flash MB RAM MB WLAN Hardware WLAN2.4 WLAN5.0 100M ports Gbit ports Modem USB
RE6500 MediaTek MT7621AT 880 8 64 MediaTek MT7602EN, MediaTek MT7612EN b/g/n a/n/ac - 4 - -



https://openwrt.org/toh/linksys/re6500

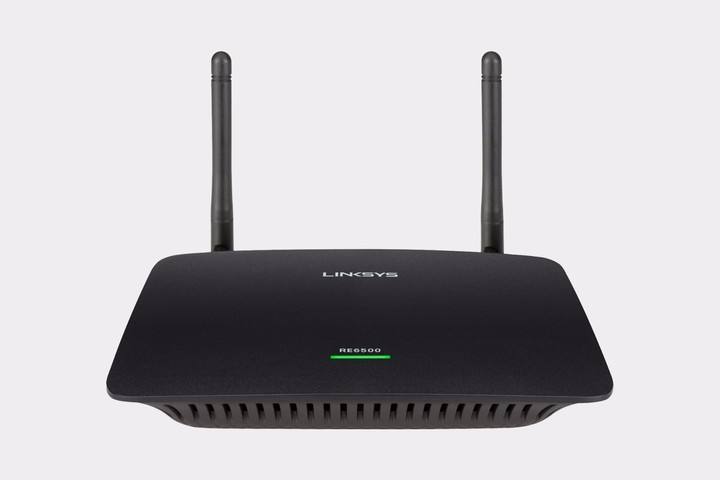

Photos

LINKSYS RE6500 刷机教程

LINKSYS RE6500 刷机教程



刷机相关软件：

Tftpd32汉化版

http://code.taobao.org/svn/hopol-bak/RE6500/Tftpd32%E6%B1%89%E5%8C%96%E7%89%88.7z



SecureCRT

http://code.taobao.org/svn/hopol-bak/RE6500/SecureCRT.rar



WinSCP_5.5

http://code.taobao.org/svn/hopol-bak/RE6500/WinSCP_5.5.zip



um_factory_fw.bin

http://code.taobao.org/svn/hopol-bak/RE6500/um_factory_fw.bin



刷机教程：

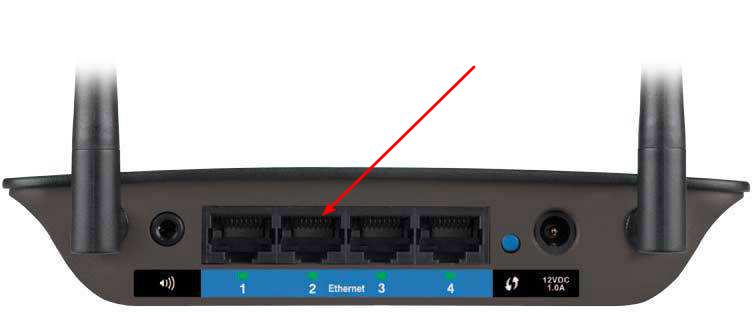

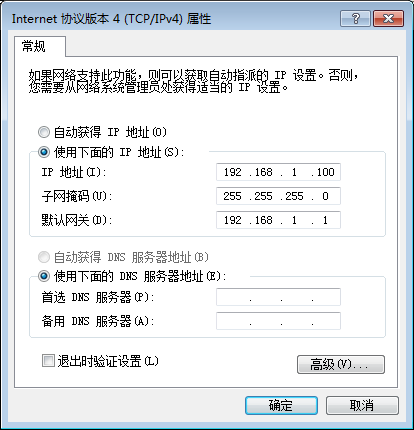

  1. 网线连接 RE6500的 网口2，将电脑的IP设置为 192.168.1.100。
    LINKSYS RE6500 刷机教程
    LINKSYS RE6500 刷机教程

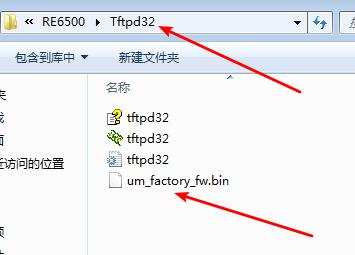

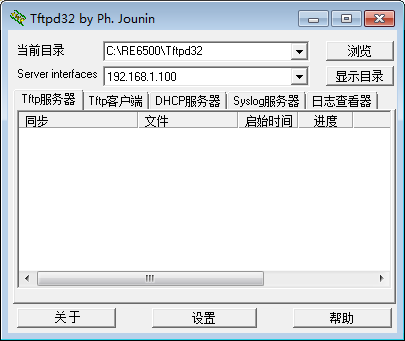

  2. 打开 TFTP服务端，把 um_factory_fw.bin 放在TFTP根目录下。
    LINKSYS RE6500 刷机教程
    LINKSYS RE6500 刷机教程

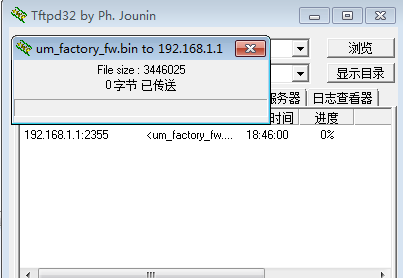

  3. 插上 RE6500 的电源，将会自动从 TFTP启动。
    LINKSYS RE6500 刷机教程

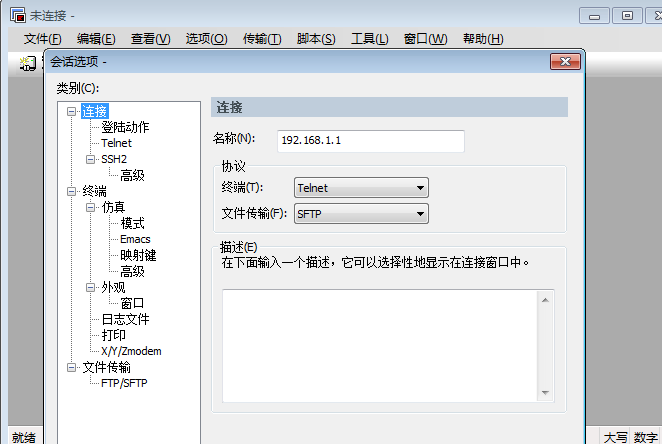

  4. 启动后可以用 telnet 链接RE6500，我习惯了使用SecureCRT软件链接telnet。
    LINKSYS RE6500 刷机教程

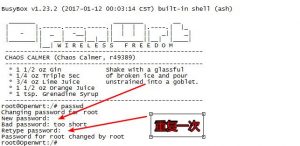

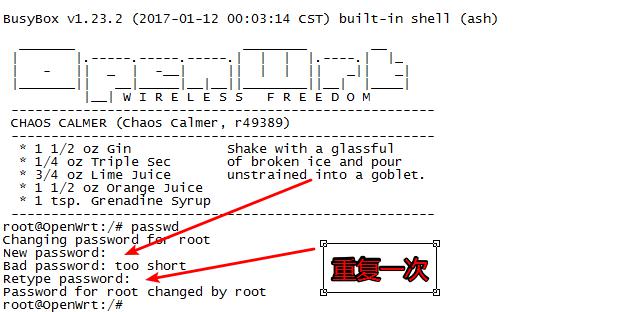

  5. telnet 192.168.1.1 链接成功后，输入 passwd 命令设置 SSH密码。
    LINKSYS RE6500 刷机教程

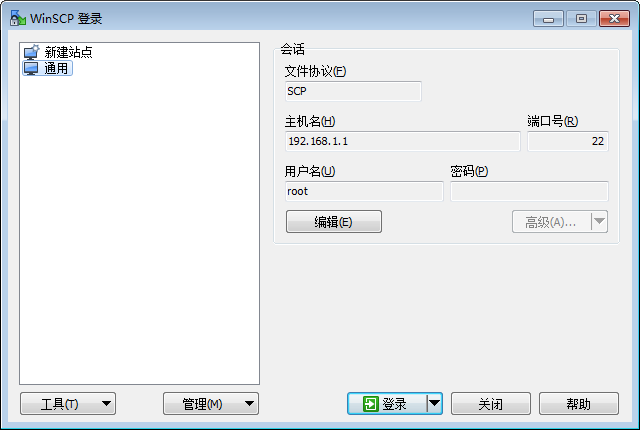

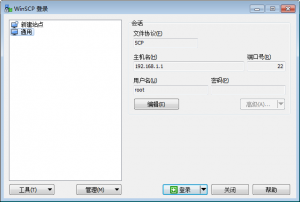

  6. 设置 SSH 密码后，用 WinSCP 链接 RE6500，并上传固件到 /tmp 文件夹下。
    LINKSYS RE6500 刷机教程
    LINKSYS RE6500 刷机教程

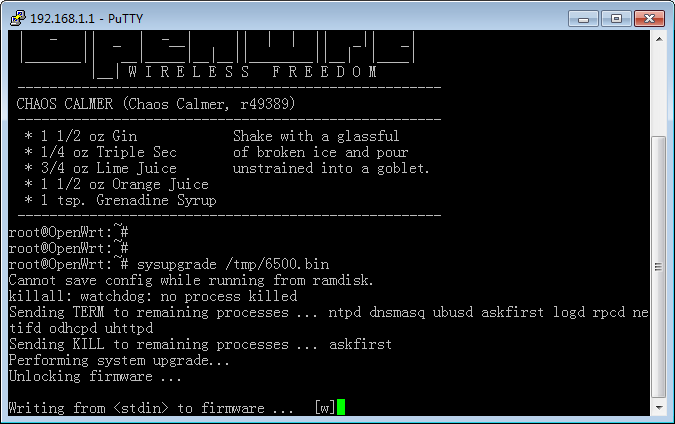

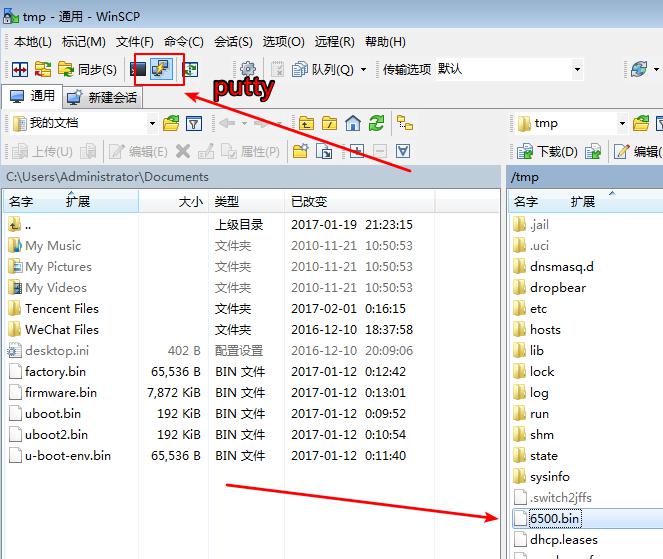

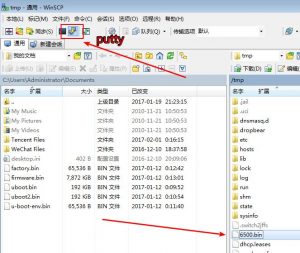

  7. 上传固件后就可以用 sysupgrade 命令刷机，可以在 Telnet 下直接输入，也可以在 WinSCP 自带的 putty下进行。
    命令举例：sysupgrade /tmp/6500.bin
    LINKSYS RE6500 刷机教程

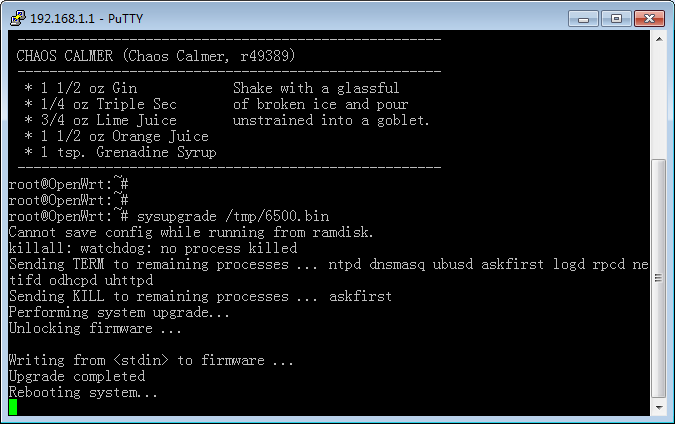

  8. 刷完固件后，RE6500会自动重启，耐心等待就好。
    LINKSYS RE6500 刷机教程





相关固件：

@Hiboy 20170211老毛子Padavan固件：

http://opt.cn2qq.com/padavan/

http://code.taobao.org/svn/hopol-bak/RE6500/RT-N56UB1-RE6500-64M_3.4.3.9-099.trx





RE6500原厂固件：

http://code.taobao.org/svn/hopol-bak/RE6500/%E3%80%90%E5%8E%9F%E5%8E%82%E3%80%91FW_RE6500_v1.0.06.011_20160621.gpg.bin





PandoraBox:

http://pandorabox.tuuz.cc:8000/pandorabox/19.02/targets/ralink/mt7621/
